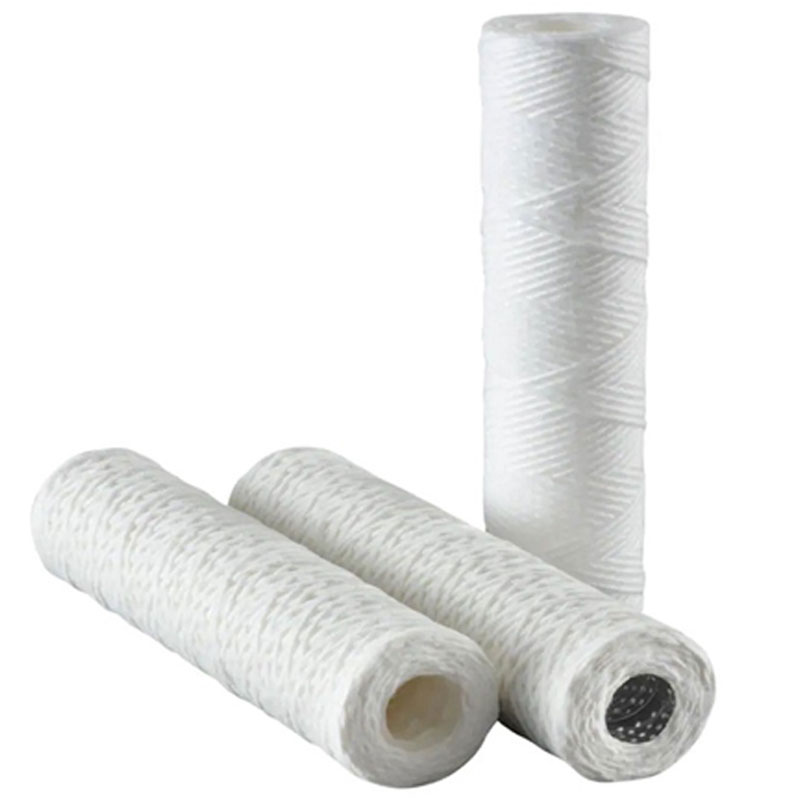

PP Wound Filter Cartridge
Aris Filtration manufactures and exports PP Wound Filter Cartridges in Gujarat, India, designed for depth filtration and removal of solid particles from industrial liquids. Made with PP yarn wound around a PP core, these cartridges provide graded-depth filtration, high dirt-holding capacity, high flow and low pressure drop across applications such as water treatment, chemicals, edible oils, refineries, textiles, mining, power plants and petrochemicals.
What is a PP Wound Filter Cartridge?
A PP Wound Filter Cartridge is a depth-filtration cartridge made by continuously winding polypropylene yarn around a polypropylene core to create progressively smaller filtration passages. As liquid flows from the outside of the cartridge toward the inner core, suspended particles are trapped throughout the depth of the wound media rather than only on its surface.
Aris Filtration uses controlled winding patterns to produce cartridges for different micron ratings. The company's published wound-cartridge range includes 1, 5, 10, 25, 50, 75 and 100 micron ratings, with cartridge lengths from 10 to 50 inches.
Key definition: A wound filter cartridge is a depth filter in which the winding pattern creates multiple passages that progressively retain particulate matter as the process fluid moves toward the cartridge core.
How does a PP Wound Filter Cartridge work?
A PP wound filter cartridge works through graded depth filtration. The liquid enters through the outer wound surface and travels through the interconnected passages formed by the polypropylene yarn. Larger particles are captured in the outer layers, while progressively smaller particles can be retained deeper inside the cartridge.
This filtration mechanism makes wound cartridges useful when a process requires particulate removal with substantial dirt-holding capacity.
PP Wound Filter Cartridge filtration process:
- Liquid enters the cartridge: Contaminated process liquid flows through the outer wound layer.
- Progressive particle retention: Suspended particles are trapped at different depths according to their size.
- Depth filtration takes place: The winding structure provides multiple filtration passages through the cartridge.
- Filtered liquid reaches the core: The cleaner liquid passes toward the inner perforated core.
- Filtered liquid exits the housing: The treated liquid continues into the downstream process.
What are the specifications of PP Wound Filter Cartridges?
| Parameter | PP Wound Filter Cartridge |
|---|---|
| Filter Media | PP Yarn |
| Core Material | PP Core |
| Cartridge Length | 10", 20", 30", 40", 50" |
| Outer Diameter | 2.5", 4", 4.5" |
| Inner Diameter | 28 mm & 50 mm |
| Micron Rating | 1, 5, 10, 25, 50, 75, 100 micron |
| End Fittings | DOE, SOE, Code-222 |
| Filtration Type | Graded-depth filtration |
| Construction | Continuous wound polypropylene yarn |
Important Facts: Final cartridge selection should be based on the process fluid, contaminant characteristics, required micron rating, flow conditions, housing configuration and operating requirements.
Why choose polypropylene for wound filtration?
Polypropylene is a practical filter-media choice for many industrial liquid-filtration applications because PP yarn can be formed into controlled wound structures for depth filtration.
A PP wound construction can provide:
- High flow capability
- Low pressure drop
- High dirt-holding capacity
- Graded-depth filtration
- High pressure resistance
- Compact cartridge construction
- Easy installation and replacement
- Multiple micron-rating options
These are the core performance characteristics published by Aris Filtration for its wound filter cartridge range.
Which industries use PP Wound Filter Cartridges?
PP wound filter cartridges can be considered for industrial processes where suspended solids and particulate contamination need to be reduced from liquids.
Industrial applications:
- Water Treatment: Pre-filtration and particulate removal in industrial water-treatment processes.
- Refineries & Oil and Gas: Liquid filtration applications where particulate control is required in process streams.
- Mining: Filtration of process liquids containing suspended mineral particles.
- Pulp & Paper: Process-liquid filtration and particulate removal.
- Chemicals: Filtration of process chemicals, acids, solvents and other compatible liquids.
- Textiles: Process-water and chemical-liquid filtration.
- Power Plants: Filtration of suitable process liquids where particulate control is required.
- Dyes & Intermediates: Removal of suspended particles from compatible process liquids.
- Edible Oils: Liquid filtration applications for particulate removal.
- Automobiles: Filtration of suitable process liquids and industrial fluids.
- Petrochemicals: Process-liquid filtration and particulate control.
- Paints & Inks: Filtration of compatible liquid formulations.
- Aeronautics: Industrial liquid-filtration applications where the cartridge chemistry and process requirements are suitable.
- Cement & Fertilizers: Process-liquid filtration and suspended-solid removal.
- Bio-Pharma: Applications requiring compatible depth filtration; process validation and material suitability should be confirmed before use.
- Ceramics: Filtration of process liquids containing suspended solids.
- Sugar: Process-liquid filtration applications.
- Defence & Marine: Suitable industrial liquid-filtration applications where PP media compatibility is established.
Aris Filtration identifies water treatment, pharmaceuticals, edible oils, chemicals, acid and alcohol filtration, solvents and organic acids among the applications for its wound filter cartridge range. The company's broader customer base also includes oil and gas, textile, mines and minerals, cement and water-treatment sectors.
How do you select the right PP Wound Filter Cartridge?
The correct cartridge should be selected according to the fluid, contaminant load, required micron rating, flow requirement and filter housing. Consider these factors before ordering:
- Required micron rating: Choose the rating according to the particle size that needs to be retained. Aris Filtration offers wound cartridges in 1, 5, 10, 25, 50, 75 and 100 micron configurations.
- Cartridge length: Select the cartridge length according to the available housing and required filtration capacity. Available lengths include 10", 20", 30", 40" and 50".
- End connection: Check whether the housing requires DOE, SOE or Code-222 configuration.
- Process-fluid compatibility: Confirm that polypropylene is suitable for the specific chemical composition, concentration and operating conditions of the process fluid.
- Contaminant loading: Higher solids loading may require an appropriate pre-filtration stage or a cartridge configuration with sufficient dirt-holding capacity.
Why choose Aris Filtration for PP Wound Filter Cartridges?
Aris Filtration is a Gujarat-based industrial filtration manufacturer and exporter offering filtration products for air, gas and liquid applications. Its product portfolio includes wound, spun-bonded, PP pleated, sintered PP and other industrial filter cartridges, along with cartridge housings, bag filter housings and filtration systems.
The company states that it follows quality procedures for its filtration products and identifies ISO 9001:2015, ASME and CE-PED standards within its quality framework. Its factory is located in Ahmedabad, Gujarat.
For buyers comparing PP wound filter cartridge manufacturers in India, Aris Filtration offers application-oriented filtration solutions with configurable cartridge dimensions, micron ratings and end fittings.
PP Wound Filter Cartridge FAQs
(1)What is a PP Wound Filter Cartridge used for?
A PP wound filter cartridge is used for depth filtration and removal of suspended solid particles from liquids. It is suitable for applications across water treatment, chemicals, edible oils, pharmaceuticals and other industrial processes.
(2)What micron ratings are available?
Aris Filtration's published wound filter cartridge range includes 1, 5, 10, 25, 50, 75 and 100 micron ratings.
(3)What sizes are available?
Published cartridge lengths are 10", 20", 30", 40" and 50", with outer diameters of 2.5", 4" and 4.5".
(4)What fittings are available?
The wound filter cartridge range is available with Double Open End (DOE), Single Open End (SOE) and Code-222 configurations.
(5)Is a PP wound cartridge a surface filter or depth filter?
A PP wound filter cartridge is a depth filter. Its controlled winding structure creates multiple filtration passages through which particles are progressively captured.
(6)How can I choose the correct cartridge?
The correct cartridge depends on the required micron rating, process fluid, particle loading, flow requirement, cartridge length and housing connection. Share these operating details with Aris Filtration to determine the appropriate configuration.
Need a PP Wound Filter Cartridge for Your Industrial Application?
If you are looking for a PP Wound Filter Cartridge manufacturer and exporter in Gujarat, India, Aris Filtration can provide wound filtration configurations for industrial liquid-filtration requirements.
For application-specific selection, customers can share the fluid type, required micron rating, flow rate, operating conditions, cartridge dimensions and housing connection with the Aris Filtration team.
